Aluminum & Nonferrous Metal

Our nonferrous blades have been designed with a negative hook angle, triple chip tooth grind, and precision ground micro grain carbide tips. The specially formulated tungsten carbide lasts longer than other carbide grades and leaves burr free cuts in all types of nonferrous metals, such as: aluminum, copper, brass, bronze, and even most plastics. The 10” and larger feature copper plugged expansion slots for reduced noise and vibration while several of the smaller diameter blades feature laser cut expansion slots and heat vents for cooler operation.

  • Professional Grade C-1 Carbide
  • Negative Hook Angle
  • Copper Plugged Expansion Slots
  • Triple Chip Grind
  • Tensioned & Hardened Steel Plate
  • Surface Ground Steel Plate

Search models

Blade Diameter

Radio filter

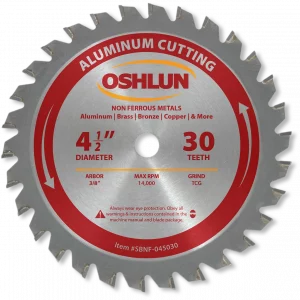

SBNF-045030

Diameter

4-1/2"

KERF

0.079"

Arbor

3/8"

Teeth

30

Grind

TCG

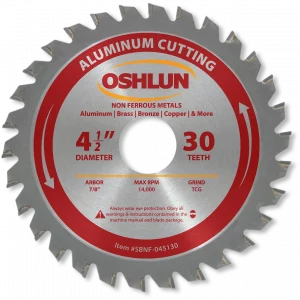

SBNF-045130

Diameter

4-1/2"

KERF

0.079"

Arbor

7/8"

Teeth

30

Grind

TCG

SBNF-054050

Diameter

5-3/8"

KERF

0.063"

Arbor

20mm with 5/8" & 10mm Bushings

Teeth

50

Grind

TCG

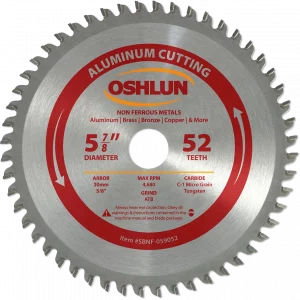

SBNF-059052

Diameter

5-7/8"

KERF

0.063"

Arbor

20mm with 5/8" Bushing

Teeth

52

Grind

ATB

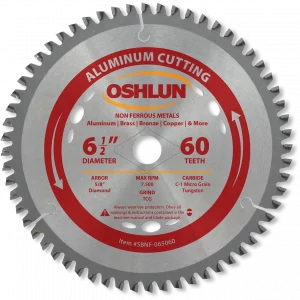

SBNF-065060

Diameter

6-1/2"

KERF

0.075"

Arbor

5/8" ◊

Teeth

60

Grind

TCG

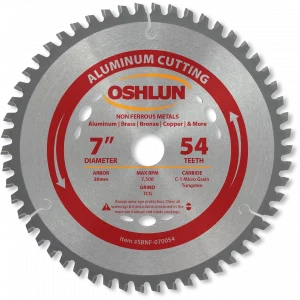

SBNF-070054

Diameter

7"

KERF

0.075"

Arbor

20mm

Teeth

54

Grind

TCG

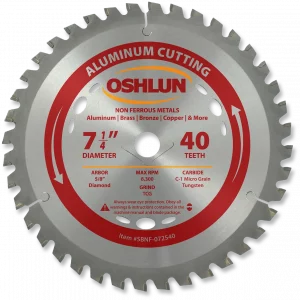

SBNF-072540

Diameter

7-1/4"

KERF

0.075"

Arbor

5/8" ◊

Teeth

40

Grind

TCG

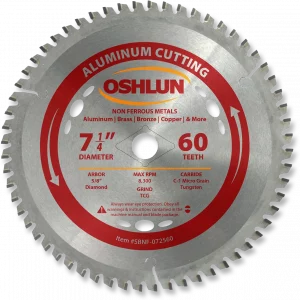

SBNF-072560

Diameter

7-1/4"

KERF

0.075"

Arbor

5/8" ◊

Teeth

60

Grind

TCG

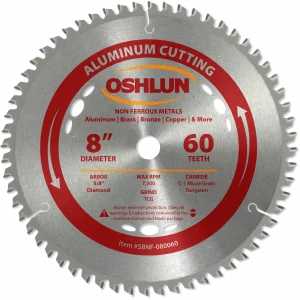

SBNF-080060

Diameter

8"

KERF

0.083"

Arbor

5/8" ◊

Teeth

60

Grind

TCG

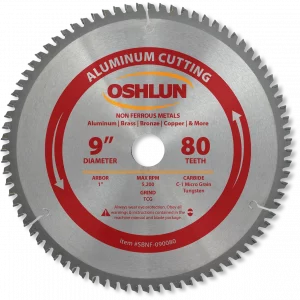

SBNF-090080

Diameter

9"

KERF

0.094"

Arbor

1"

Teeth

80

Grind

TCG

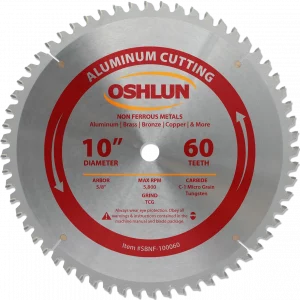

SBNF-100060

Diameter

10"

KERF

0.110"

Arbor

5/8"

Teeth

60

Grind

TCG

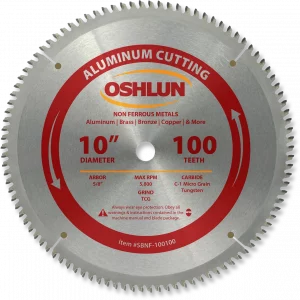

SBNF-100100

Diameter

10"

KERF

0.110"

Arbor

5/8"

Teeth

100

Grind

TCG

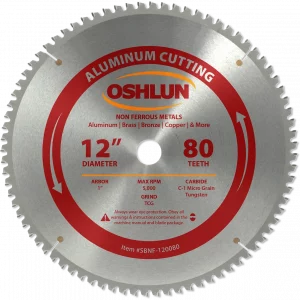

SBNF-120080

Diameter

12"

KERF

0.118"

Arbor

1"

Teeth

80

Grind

TCG

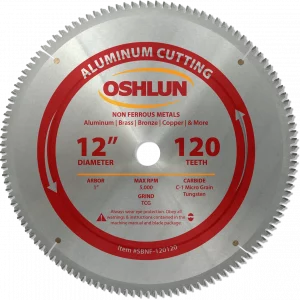

SBNF-120120

Diameter

12"

KERF

0.118"

Arbor

1"

Teeth

120

Grind

TCG

SBNF-140100

Diameter

14"

KERF

0.138"

Arbor

1"

Teeth

100

Grind

TCG

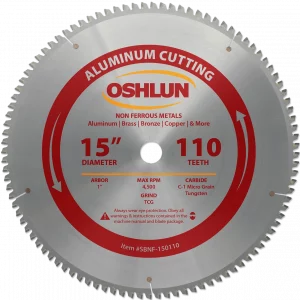

SBNF-150110 1

Diameter

15"

KERF

0.138"

Arbor

1"

Teeth

110

Grind

TCG
Item #DiameterTeethArborKERFGrindImageBuy Now
SBNF-0450304-1/2"303/8"0.079"TCG
SBNF-0451304-1/2"307/8"0.079"TCG
SBNF-0540505-3/8"5020mm with 5/8" & 10mm Bushings0.063"TCG
SBNF-0590525-7/8"5220mm with 5/8" Bushing0.063"ATB
SBNF-0650606-1/2"605/8" ◊0.075"TCG
SBNF-0700547"5420mm0.075"TCG
SBNF-0725407-1/4"405/8" ◊0.075"TCG
SBNF-0725607-1/4"605/8" ◊0.075"TCG
SBNF-0800608"605/8" ◊0.083"TCG
SBNF-0900809"801"0.094"TCG
SBNF-10006010"605/8"0.110"TCG
SBNF-10010010"1005/8"0.110"TCG
SBNF-12008012"801"0.118"TCG
SBNF-12012012"1201"0.118"TCG
SBNF-14010014"1001"0.138"TCG
SBNF-150110 115"1101"0.138"TCG

Designed For

1 Hitachi®

WARNING: Never attempt to cut steel or ferrous metals with these blades. It is highly recommended that you use a liquid lubricant or coolant like WD-40 when cutting nonferrous metals. Proper clamping devices should be employed.
